Hedge Trimmer

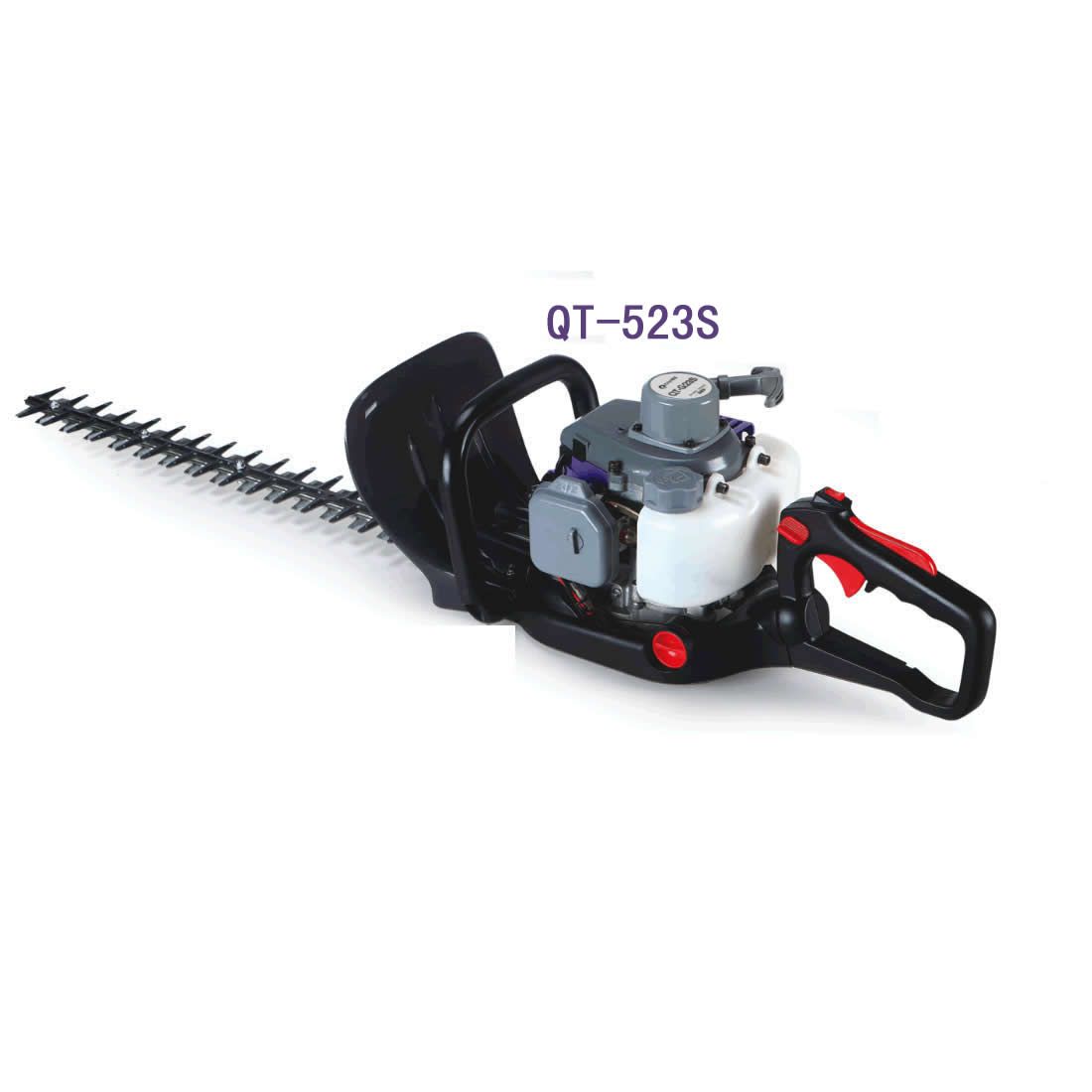

QT-G523S


内置减震弹簧,作业时减少机器的震动与晃动

Built-in shock  absorber spring, reduce vibration and swing machine operation

新颖的握把设计,舒适不宜疲劳,更适合长时间,大面积作业

Handle with novel design, comfortable and not easy to fatigue,more suitable for long time, large area operation

采用双层过滤海绵,过滤灰尘效果更显著,化油器使用寿命更长

Using double filter sponge, dust filtration effects is more singificant, carburetor longer service life



YONGKANG QITIAN INDUSTRY&TRADE CO.,LTD


ADD: No.88,North MingYuan Road Changcheng Industrial Zone,YongKang,Zhejiang,China
MOBILE: 0086-18758931912   18857964948
TEL: 0086-579-89286872
FAX: 0086-579-87219268
E-mail: 469236538@qq.com
Http//: www.zjqitiqan.com

Product detail

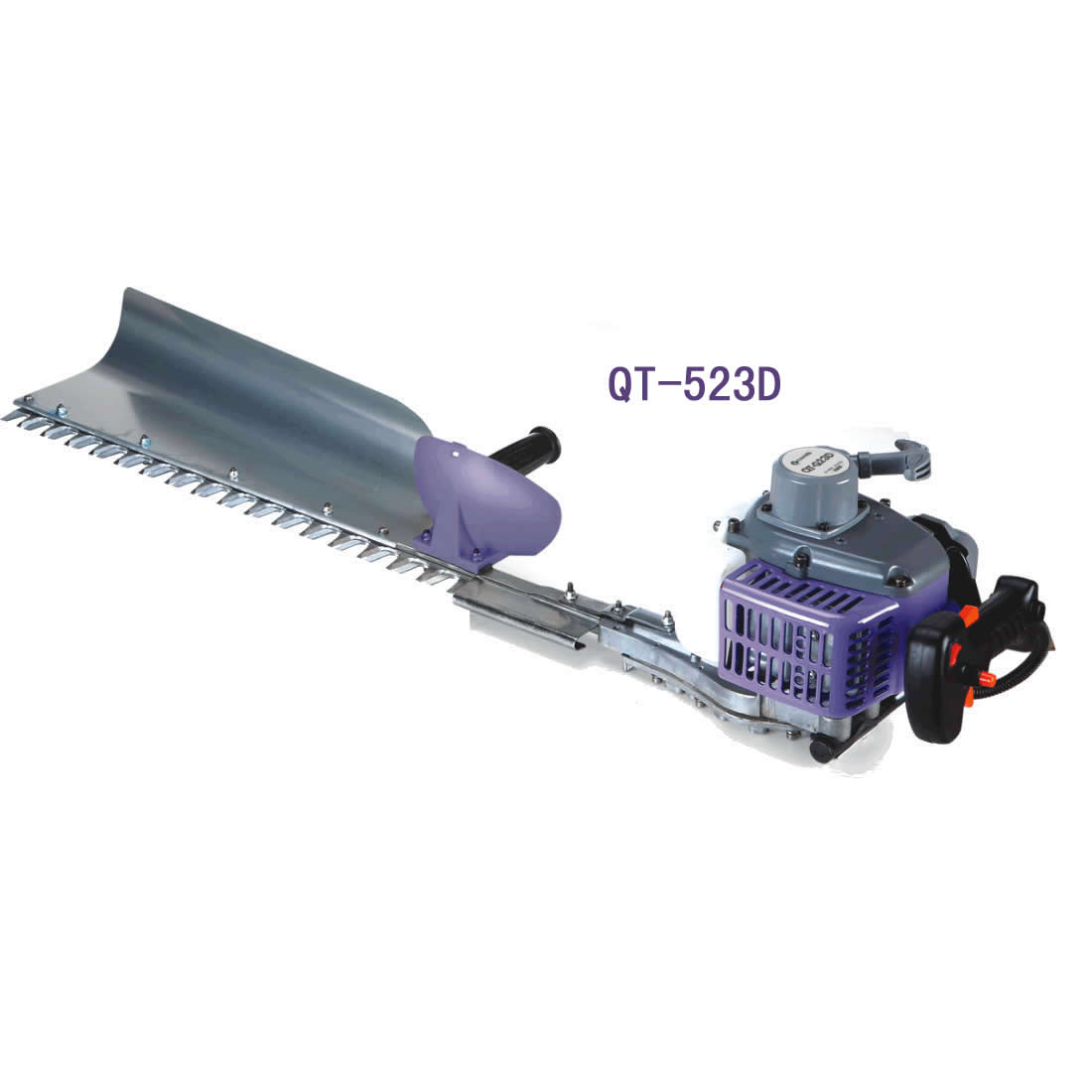

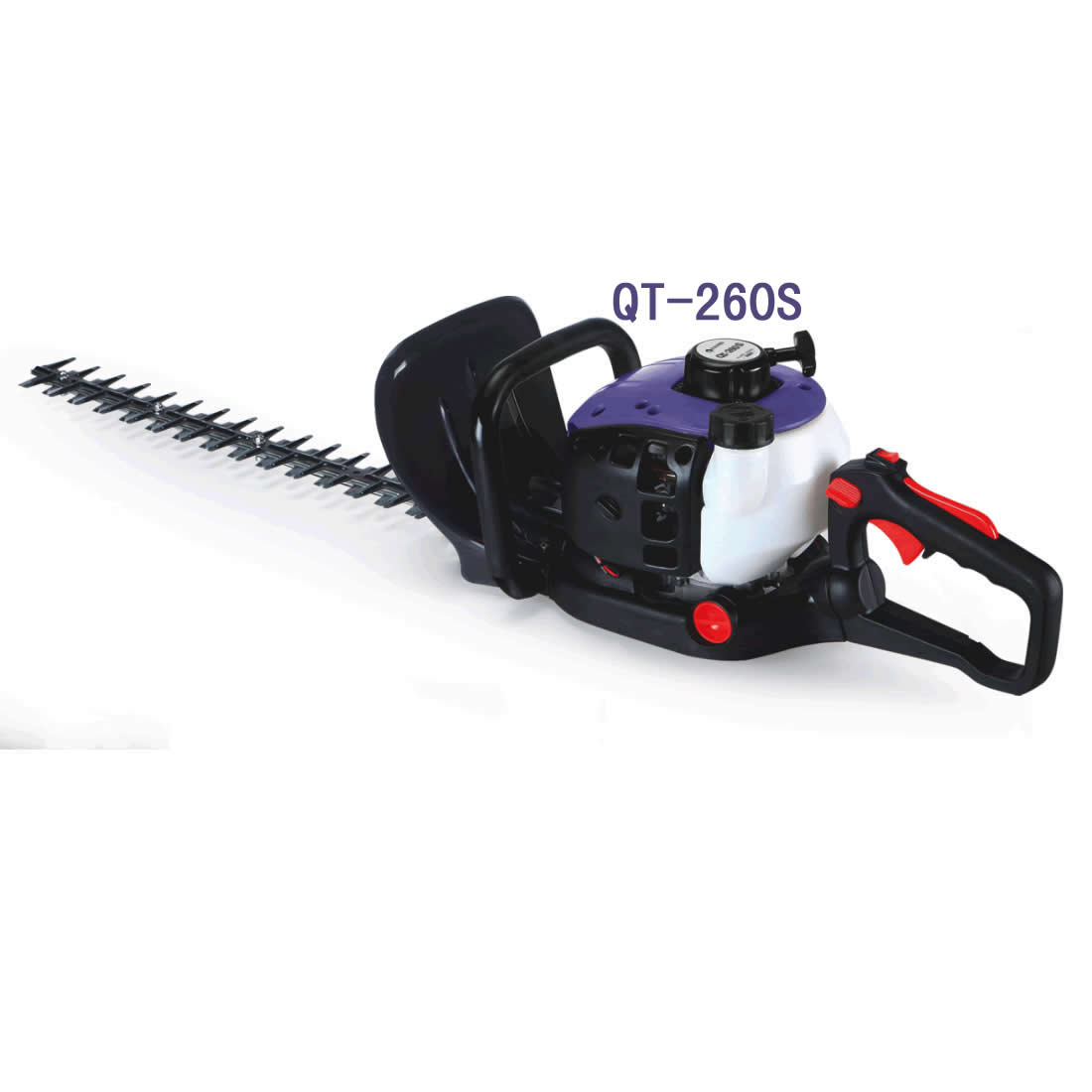

型号 Model  QT-260S QT-G523S  QT-G523D

汽油机形式 Engine Type

 单缸风冷二冲程  Air-cooling single-cylinder 2-stroke
最大功率 Max Power  0.85KW/7500rpm 0.85KW/7500rpm  0.65KW/7500rpm
排量     Displacement  26.0cc 22.5cc   22.5cc
单刀形式  Scissors Type  双刃往复式 Two-edged reciprocating  单刃往复式 single blade reciprocating
宽幅  Cutting length  600mm 600mm  746mm
化油器 Carburetor 膜片式 Diaphragm type 膜片式 Diaphragm type  膜片式 Diaphragm type
点火方式 Lgnition Type 无触点电子点火 (CDI) 无触点电子点火 (CDI) 无触点电子点火 (CDI)
怠    速   Ldling Speed  2800-3200r/min 2800-3200r/min  2800-3200r/min
混合燃料比   Mixture Fuel Ratio  1:25 1:25  1:25
燃油箱容积     Fuel Tank Capacity  400ml 400ml 400ml
